Dry Fogger System, Pneumatic Operated

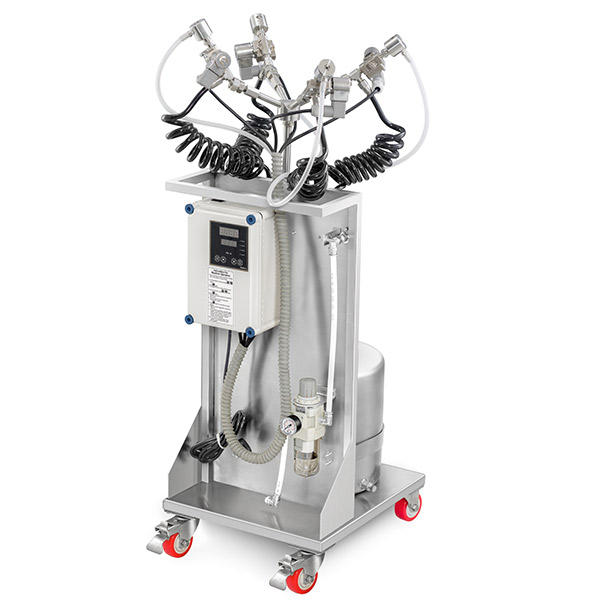

The TRS 01 Flexible Nozzle Machine is part of the Dry Fogger System, Pneumatic Operated family and is a cutting-edge solution for accurate fluid dispensing in industry. High-performing and universal, the system uses a pneumatic system to provide stable dry fogging, and thus is best suited for application in disinfecting, humidifying, and coating operations. Its adjustable nozzle design allows us operators to micro-regulate flow rate and droplet size to provide even coverage and yet try to minimize waste. Easy controls and real-time monitoring of the machine allow users to work comfortably and make quick adjustments, minimizing downtime and maximizing productivity. Its constructed with high- quality materials, the TRS 01 guarantees long-term performance and stable operation even with extended use in adverse conditions. Its small footprint offers seamless integration into existing production lines, offering a cost-efficient solution with minimal reconfiguration. The TRS 01 Flexible Nozzle Machine is a marriage of cutting-edge pneumatic technology and ease of use to offer precise, efficient, and environmentally friendly performance in industrial dry fogging applications. Its cutting- edge design also ensures maximum overall operating efficiency with reliably safe and cost-efficient operations.
  • Atomizes chemical solutions using compressed air.

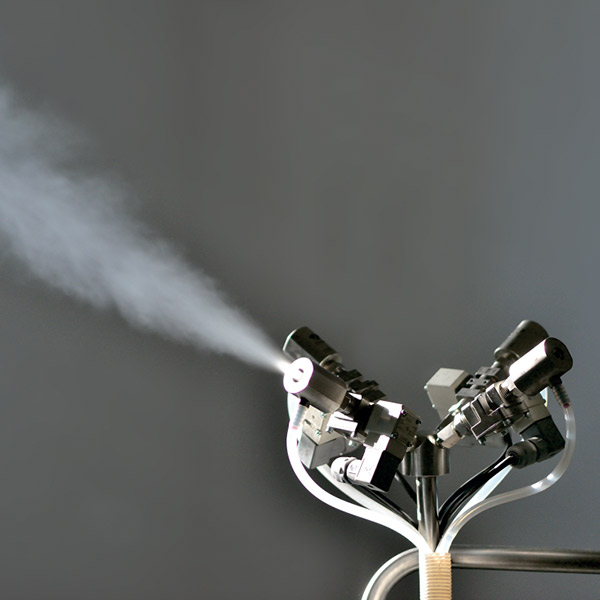

  • Projects fine, “dry” fog particles at distances up to 40′ in 4 opposite directions.
  • Nozzle Direction Flexibility enhances ability to direct fog in required direction in line   with existing room set up & layout as per need.
  • Unique system of automatic operation of control valves maximizes nozzle performance, ensures ultra fine aerosol generation & spread in all directions.
  • Compatible with (H2o2 + silver), (H2o2 + peracetic acid) based disinfectant formulations.
  • Effective dispersion & penetration into all inaccessible areas.
  • Control unit allows selection of 4 directional mode or two directional mode of operation.
  • Robust construction, portable system can be used in multiple locations.
  • Sanitary construction using stainless steel 316 for piping, nozzles, air and liquid contact parts.
  • Range of precision metering tips for dry fog quality variation.
  • Venturi action draws pre-diluted chemicals and disinfectants.
  • Digital timer facilitates auto START & auto OFF operations.
  • Variable height adjustment to sanitize areas with different height
  • Requires 70CFM of compressed air @ 87PSI(6 bar)
  • Power supply 5amp, 240Vac.
  • Room Treatment capacity: 35000cuft / 1000m.
  • Disinfectant consumption: 300-550 ml per
  • 1000 cuft of space depending upon quality of
  • Fog treatment selected.
  • Stainless steel grade 316 Tank :
  • Capacity 9 or 22 liters.
  • Engineering plastic tank capacity : 12 Liters / 20 Liters
  • All stainless steel 304, 4 – wheel trolley for portability.
  • Tubing: Silicon, medical grade.
  • Required air supply line connection -1/2”.
  • Dimensions: 570 L X 480 W X 1550 H (mm)
  • Empty weight: 29 kg (with 22 liter tank)
  • 28 kg (with 9 liter tank)

Applications

Pharmaceutical Plants

Food Processing

Laboratories

Animal House

Hatcheries
